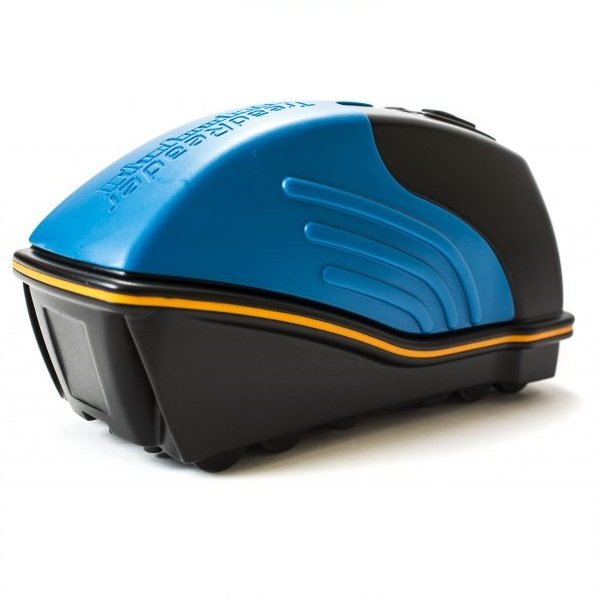

Hand Held Tread Reader Scanner
- Portable device suitable for static and mobile applications
- Produces 3D tread depth scan
- Produces operator report incorporating vehicle ID and color coded tread depth indicators
- Provides accurate reading even for wet or dirty tires
- Integrates with garage management system
Description
The TREADMANAGERTM platform is a cloud-based, user-friendly Android® and iOS® application designed to streamline the tire scanning process. Easy to set up, it pairs seamlessly with your device, enabling you to configure settings, perform scans, and access stored data effortlessly.
Using advanced algorithms, TREADMANAGER calculates tire tread depths and generates 3D, color-coded images that display tire conditions, complete with tread warning alerts for each axle and tire position.
Fully integrated with the TREADREADER HandHeld device, TREADMANAGER is built to enhance service efficiency and boost sales. It stores all tire scans and provides service managers with reports on vehicles scanned, technician activity, and sales opportunities for tire and alignment services.
Additional information
| Brand | Tread Reader |
|---|---|
| Model | EETDEU900A |
| Dimensions (L x W x H) | 7" x 3.5" x 2.8" (180 x 90 x 70mm) |
| Patch scanned | 2” x 0.9” (50 x 23mm) |
| Maximum tread depth | 0.9" (23mm) |
| Measurement accuracy | < 0.008” (< 0.2mm) |
| Laser class | Class 2 |
| Operating temperature range | 32°F to 122°F (0°C to 50°C) |
| Communication | Bluetooth Low Energy (BLE) |
| Environmental rating | IP 64 |
| Power | 5V DC rechargeable battery w/ USB 3.1 Type C / 100-240 VAC |
